EV Chargers & Components
EV Chargers
01

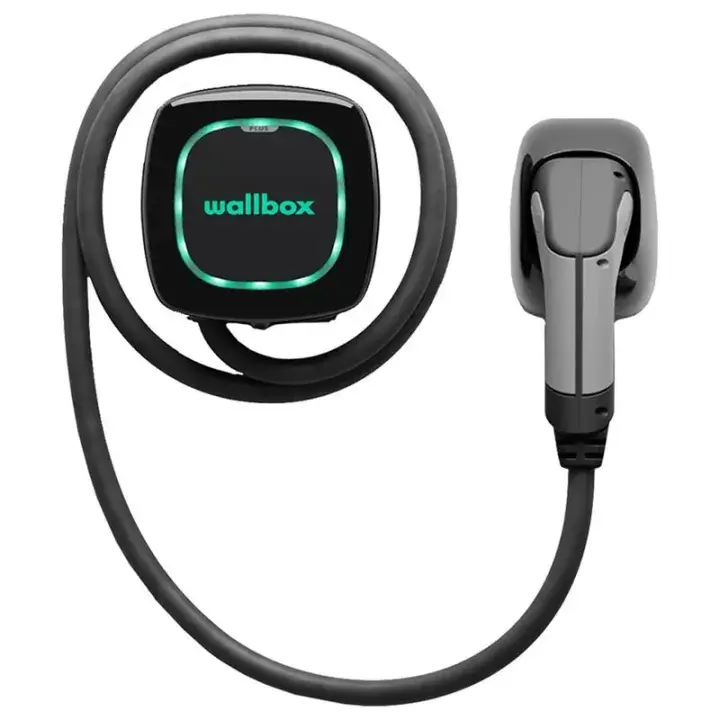

Wallbox Pulsar Plus 7kW
General:
Brand: Wallbox Pulsar Plus (Spain)
Colour: Black
Dimension: 198mm x 201mm x 99mm
Plug type: 5m Type 2 cable Tethered
Connectivity: WIFI, Bluetooth
Power:
Rated Power and Current: 1-phase: 7kW, 32A
Input/Output Voltage : 1-phase: 230VAC
Range : adding ±40km per hour of charging
Protection:
IP54 / IK08
Manufacturer Warranty: 2 year
02
Exicom
General:
• Brand : Exicom (India)
• Model : Harmony AC Charger Basic
• Colour : Black with white edge
• Dimension : 546 x 319 x 230mm
• Connection type : 4.5m Type 2 cable Tethered
Power:
• Rated Power and Current: 1-phase: 7kW, 32A
• Input/Output Voltage : 1-phase: 150–270VAC
• Range : adding ±40km per hour of charging
Protection:
• Surge Protection, Overcurrent, Overvoltage,
Undervoltage, Ground Fault, Current leakage,
Over temperature, Emergency Detect
• IP56
• Manufacturer Warranty: 2 year
03
Zhida Guardian
General:
Brand : Zhida
Model : Guardian Charging Station
Colour : Black
Dimension : 310 x 210 x 90mm
Connection type : 5m Type 2 cable Tethered
Weight : 3.5kg
Power:
Rated Power and Current: 1-phase: 7kW, 32A
Input/Output Voltage : 1-phase: 230VAC
Range : adding ±40km per hour of charging
Connectivity: Wi-Fi, 4G, Bluetooth
Protection:
Lightning Protection, Overcurrent, Overvoltage,
Undervoltage, Ground Fault, Current leakage,
Over temperature, Short Circuit Protection
IP55
Emergency Stop Protection
Manufacturer Warranty: 2 years
04

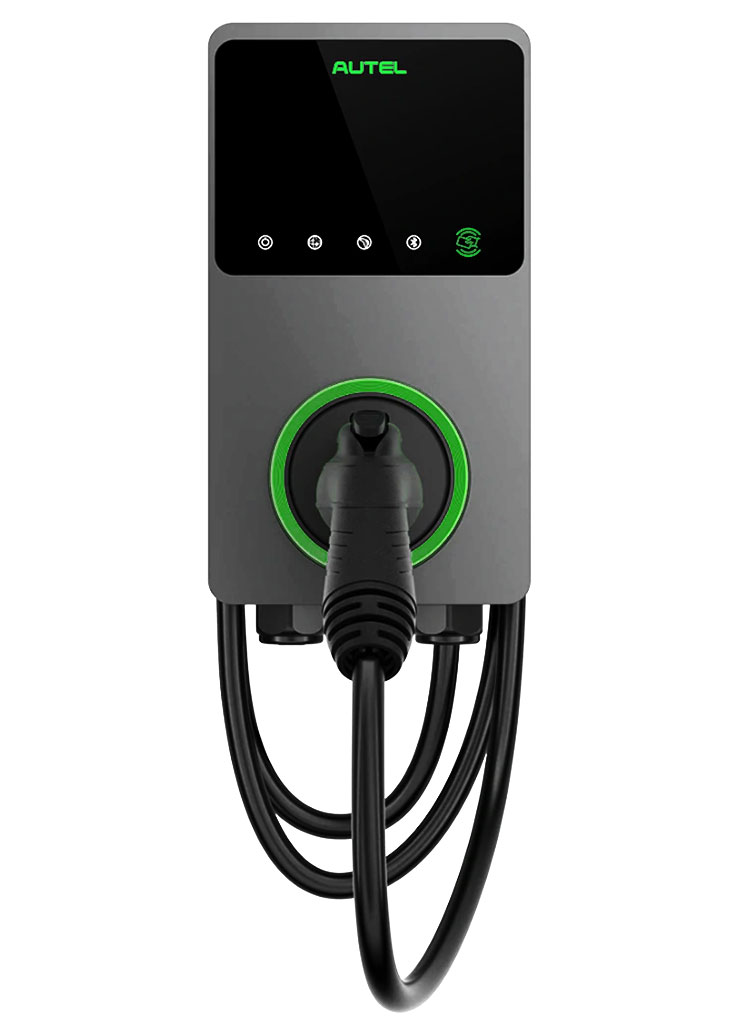

Autel AC Charger
General:
Brand : Autel
Model : MaxiCharger AC Wallbox
Colour : Black, Grey and Green
Dimension : 336 x 187 x 85mm
Connection type : 5m Type 2 cable Tethered
Weight : 3.6kg
Power:
Rated Power and Current: 3-phase: 22kW, 32A
Range : Max adding ±144km/hour of charging
Connectivity:
Connectivity: WIFI, Bluetooth, Ethernet
User authentication: APP, RFID QR code
Protection:
Overcurrent, Overvoltage, Undervoltage.
Body: IP65 Socket: IP54 IK08
Operating Temperature: -40°C – 55°C
Manufacturer Warranty: 3 years
Frequently Asked Questions (FAQs)
The most popular home EV chargers to buy in Malaysia in 2024
Wallbox Pulsar Plus.
BMW Wallbox / Mini Wallbox
Zhida Guardian.
Tesla Wall Connector.
Autel MaxiCharger AC Wallbox
Exicom Harmony AC Charger Basic
ABB Terra
Level 1 Chargers:
Level 1 chargers use a standard 240-volt 3-pin power point, commonly available in Malaysian homes. They charge slowly, typically adding about 1.8 kW to 2 kW of power per hour, making them suitable for quick top-up charging. However, it’s important to note that most residential power points are not specifically designed for EV charging, which may limit their suitability for extended use. For optimal performance and safety, consider using a Level 2 charger for longer charging sessions, ensuring your electric vehicle is charged efficiently and effectively.
Level 2 Chargers:
Level 2 chargers are perfect for residential and commercial use. They operate on a 240V single-phase or 415V 3-phase supply, adding 7kW to 22kW of power per hour to your electric vehicle’s battery. This charging speed makes them ideal for overnight charging. Level 2 chargers are also the safest option, ensuring optimal performance while extending battery durability.
Level 2 is the fastest charging option available for AC power and is perfectly compatible with the electrical grid at your home.
DC Fast Chargers (Level 3):
DC Fast Chargers are the fastest charging option, offering speeds from 30kW to 350kW, making them ideal for on-the-go charging. In Malaysia, these high-powered stations are primarily located along major highways and at EV dealer centers. They can charge up to 80% of an electric vehicle’s battery in approximately 30 minutes, making them essential for road trips and a convenient choice for EV drivers seeking quick charging solutions
An EV Charger, or EV Charging Station is a device designed to provide electrical power for recharging plug-in electric vehicles (EVs). These charging stations are primarily categorized into two types: AC charging stations and DC charging stations. AC chargers are commonly used for residential and commercial applications, they are also known as Electric Vehicle Supply Equipment (EVSE). While DC fast chargers offer rapid charging solutions, ideal for long-distance travel.
No, you typically do not need a different EV charger for various electric vehicles (EVs) in Malaysia. Most electric car chargers are standardized and comply with Malaysia standards, making them compatible with nearly all EVs available in the Malaysian market. The only exception may be reconditioned EVs from overseas, which could have different charging designs.
In Malaysia, the cost of an EV charger depends on the power output and model. A Single-Phase 7kW EV charger typically ranges from RM3,000 to RM5,000, while a 3-Phase 22kW charger costs between RM4,500 to RM7,000. These prices usually include local warranty, ensuring reliable support and peace of mind for EV owners.
For more information about EV charger installation, please visit our services page. Choosing the right EV charger with warranty and professional installation ensures long-term value and performance.
